A solar cable size chart is a reference guide that helps installers, electricians, and homeowners choose the correct cable size for photovoltaic (PV) systems. Selecting the right cable size ensures efficient power transmission, minimizes voltage drop, improves safety, and extends the lifespan of the entire solar energy system.
- Prevents excessive voltage drop
- Improves system efficiency
- Enhances electrical safety
- Complies with electrical standards
- Reduces long-term maintenance costs
Why Choosing the Correct Solar Cable Size Matters
The performance of a solar power system depends heavily on cable sizing. Undersized cables create higher electrical resistance, resulting in energy losses and overheating. Oversized cables increase installation costs unnecessarily. Using the proper cable size strikes the perfect balance between efficiency, durability, safety, and overall project cost.
Understanding Solar Cable Size Measurements
Solar cable sizes are commonly measured in square millimeters (mm²). The measurement refers to the conductor’s cross-sectional area rather than its diameter. Larger cross-sectional areas allow more electrical current to flow safely while reducing resistance and heat generation within photovoltaic installations.
Common Solar Cable Sizes Used in PV Systems
Most residential and commercial solar systems use cable sizes ranging from 2.5 mm² to 35 mm². Smaller systems generally require thinner cables, while larger solar arrays and long-distance cable runs demand thicker conductors to safely carry higher electrical currents with minimal losses.
Popular Solar Cable Sizes
- 2.5 mm²
- 4 mm²
- 6 mm²
- 10 mm²
- 16 mm²
- 25 mm²
- 35 mm²

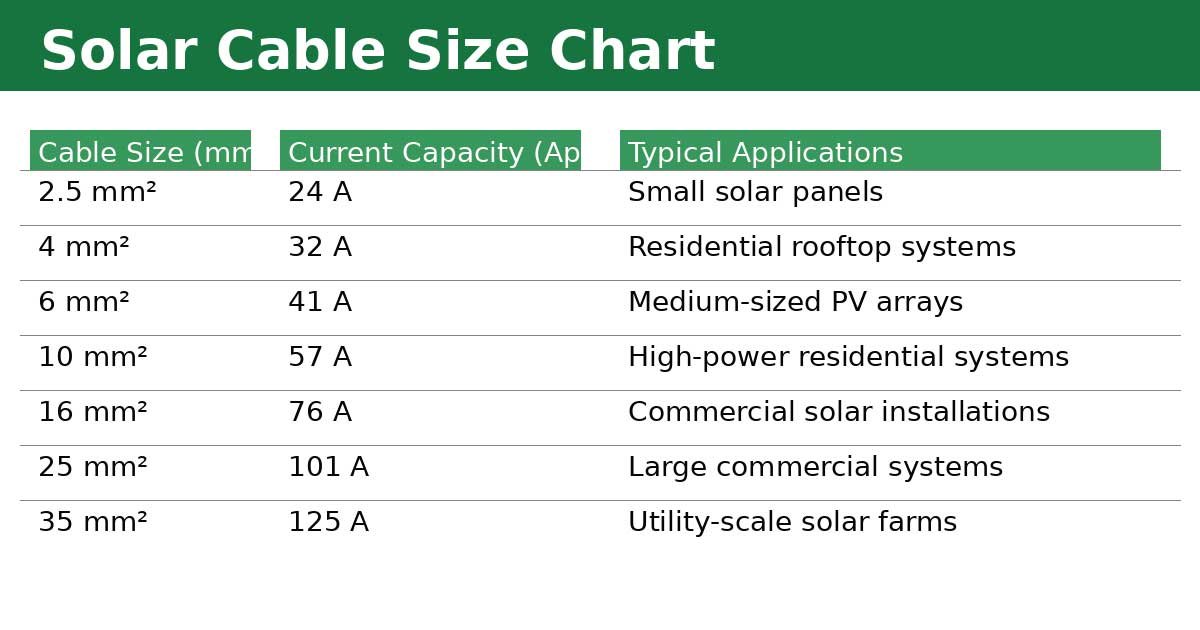

Standard Solar Cable Size Chart
The following chart provides general recommendations for selecting solar cable sizes. Actual requirements may vary depending on local electrical codes, installation conditions, cable length, current rating, and acceptable voltage drop.
| Cable Size (mm²) | Current Capacity (Approx.) | Typical Applications |
|---|---|---|
| 2.5 mm² | 24 A | Small solar panels |
| 4 mm² | 32 A | Residential rooftop systems |
| 6 mm² | 41 A | Medium-sized PV arrays |
| 10 mm² | 57 A | High-power residential systems |
| 16 mm² | 76 A | Commercial solar installations |
| 25 mm² | 101 A | Large commercial systems |
| 35 mm² | 125 A | Utility-scale solar farms |
Solar Cable Size Chart PDF
Choosing the correct solar cable size improves efficiency, minimizes voltage drop, and enhances overall system safety. This Solar Cable Size Chart lists approximate current capacities and common applications for popular cable sizes, making it easier to select the right cable for residential, commercial, and utility-scale photovoltaic (PV) installations.
Factors That Affect Solar Cable Size Selection
Several technical factors determine the ideal cable size for a solar installation. Ignoring any of these variables can lead to inefficient operation or safety hazards. Proper planning ensures reliable performance throughout the solar system’s expected service life.
Key Factors Include
- Cable length
- Maximum current
- System voltage
- Ambient temperature
- Installation method
- Voltage drop limit
- Local electrical regulations
How Cable Length Impacts Cable Size
Longer cable runs naturally increase electrical resistance. As resistance rises, voltage drop also increases, reducing system efficiency. To compensate, installers often select larger cable sizes for longer distances, ensuring that generated solar energy reaches the inverter or battery with minimal losses.
What Is Voltage Drop in Solar Systems?
Voltage drop refers to the reduction in electrical voltage as electricity travels through a cable. Excessive voltage drop lowers energy production and system efficiency. Industry guidelines typically recommend limiting voltage drop to around 2–3% for optimal photovoltaic system performance.
How Current Rating Influences Cable Selection
Every cable has a maximum current-carrying capacity known as ampacity. If electrical current exceeds this limit, excessive heat builds up inside the conductor, potentially damaging insulation and creating fire hazards. Proper cable sizing ensures the conductor safely handles the expected operating current.
DC Solar Cables vs AC Solar Cables
Solar installations use both DC and AC cables. DC cables connect solar panels to the inverter, while AC cables transfer electricity from the inverter to the electrical distribution system. Although both require proper sizing, their specifications and insulation requirements often differ significantly.
DC Cable Features
- UV resistant
- Double insulated
- Weatherproof
- High-temperature resistant
- Suitable for outdoor installation
AC Cable Features
- Flexible installation
- Indoor and outdoor use
- High mechanical strength
- Suitable for building wiring
- Compatible with distribution networks
Copper vs Aluminum Solar Cables
Copper and aluminum conductors are widely used in electrical installations. Copper offers superior conductivity, flexibility, and durability, making it the preferred choice for residential solar systems. Aluminum provides a more affordable solution for large commercial projects despite requiring larger conductor sizes.
| Feature | Copper Cable | Aluminum Cable |
|---|---|---|
| Conductivity | Excellent | Good |
| Cost | Higher | Lower |
| Weight | Heavier | Lighter |
| Flexibility | Excellent | Moderate |
| Corrosion Resistance | High | Moderate |
Temperature Effects on Solar Cable Performance
High environmental temperatures reduce a cable’s current-carrying capacity. Solar installations exposed to direct sunlight often experience elevated operating temperatures, making temperature correction factors essential when selecting cable sizes to maintain safe and efficient system performance throughout the year.
Importance of Cable Insulation in Solar Installations
Solar cables operate in harsh outdoor environments where they face sunlight, moisture, rain, wind, chemicals, and temperature fluctuations. High-quality insulation protects conductors from environmental damage, electrical leakage, and mechanical wear while ensuring reliable long-term operation with minimal maintenance.
How to Calculate the Correct Solar Cable Size
Selecting the correct solar cable size requires calculating the expected current, measuring the total cable length, determining the acceptable voltage drop, and considering installation conditions. Combining these factors ensures the cable safely carries electrical power while maintaining maximum efficiency throughout the photovoltaic system.
Basic Cable Sizing Steps
- Determine system voltage.
- Calculate maximum current.
- Measure cable length.
- Decide acceptable voltage drop.
- Apply temperature correction factors.
- Select the nearest standard cable size.
Solar Cable Size Formula Explained
A cable sizing formula helps estimate the minimum conductor size required for safe operation. While professional software simplifies these calculations, understanding the basic relationship between voltage, current, resistance, and distance helps installers make informed decisions before finalizing a photovoltaic system design.
Recommended Cable Size for Residential Solar Systems
Most residential solar installations between 3 kW and 10 kW commonly use 4 mm², 6 mm², or 10 mm² cables depending on panel configuration, inverter location, and cable distance. Proper sizing minimizes electrical losses while ensuring compliance with local electrical safety standards.
Typical Residential Recommendations
| System Size | Common Cable Size |
|---|---|
| 1–3 kW | 4 mm² |
| 3–5 kW | 6 mm² |
| 5–8 kW | 10 mm² |
| 8–10 kW | 16 mm² |
Recommended Cable Size for Commercial Solar Systems
Commercial solar installations carry significantly higher currents than residential systems. These projects often require 16 mm², 25 mm², 35 mm², or even larger conductors depending on system capacity, inverter arrangement, cable routing, and local electrical code requirements.
Choosing Solar Cable Size for Battery Connections
Battery cables experience continuous charging and discharging currents. Because battery systems often operate at lower voltages but higher current levels, selecting adequately sized cables becomes especially important to reduce heat generation, maintain charging efficiency, and maximize battery lifespan.
Battery Cable Selection Tips
- Keep cable runs short.
- Use high-quality copper conductors.
- Protect cables with proper fuses.
- Match cable size to inverter current.
- Inspect terminals regularly.
How Inverter Distance Affects Cable Selection
The farther the inverter is located from the solar panels, the greater the voltage drop through the connecting cables. Increasing cable size helps compensate for longer distances, ensuring the inverter receives sufficient voltage to operate efficiently without unnecessary power losses.
Importance of Voltage Drop Calculations
Voltage drop calculations help designers determine whether electrical energy is being delivered efficiently throughout the solar installation. Keeping voltage losses within recommended limits improves inverter performance, enhances battery charging efficiency, and increases overall annual energy production from the solar array.
Solar Cable Color Codes
Solar cable colors help identify conductor polarity and improve installation safety. Although color standards may vary by region, most photovoltaic systems follow internationally recognized practices that simplify maintenance, troubleshooting, and future system expansion.
Common Cable Colors
- Red – Positive DC
- Black – Negative DC
- Green/Yellow – Grounding
- Brown – Live AC
- Blue – Neutral AC
Best Materials Used in Solar Cables
Modern solar cables use premium insulation and conductor materials designed to withstand decades of outdoor exposure. These specialized materials resist ultraviolet radiation, moisture, ozone, abrasion, chemicals, and extreme temperatures while maintaining excellent electrical performance under demanding environmental conditions.
Common Mistakes When Selecting Solar Cable Size
Incorrect cable selection remains one of the most frequent installation mistakes. These errors reduce efficiency, increase operating temperatures, and may shorten equipment life. Careful planning and adherence to manufacturer recommendations help eliminate costly installation problems.
Mistakes to Avoid
- Ignoring voltage drop
- Choosing cables based only on price
- Using indoor cables outdoors
- Selecting undersized conductors
- Ignoring temperature ratings
- Overlooking local electrical codes
Solar Cable Safety Tips
Proper cable installation is just as important as selecting the correct size. Well-installed cables reduce electrical hazards, improve reliability, and simplify future maintenance. Following industry best practices helps protect both the solar equipment and building occupants.
Safety Best Practices
- Use certified solar cables.
- Protect cables inside conduits where necessary.
- Secure cables with UV-resistant clips.
- Avoid excessive bending.
- Inspect insulation before installation.
- Label DC and AC circuits clearly.
Maintenance Tips for Solar Cables
Routine inspections help identify wear before it affects system performance. Although quality solar cables require minimal maintenance, periodic visual checks improve long-term reliability and reduce unexpected downtime by detecting damage caused by weather, animals, or mechanical stress.
Maintenance Checklist
- Inspect insulation for cracks.
- Check connectors for corrosion.
- Tighten loose terminals.
- Clean debris around cable routes.
- Replace damaged cables immediately.
- Test electrical continuity periodically.
Industry Standards for Solar Cables
Solar cables should comply with recognized national and international standards to ensure safety, durability, and consistent performance. Certified products undergo rigorous testing for electrical insulation, flame resistance, mechanical strength, and environmental durability before being approved for photovoltaic applications.
Benefits of Using the Correct Solar Cable Size
Proper cable sizing delivers long-term performance advantages that extend beyond simple electrical safety. Investing in correctly sized cables reduces maintenance costs, improves energy efficiency, and protects expensive solar equipment from preventable electrical problems.
Major Benefits
- Higher energy efficiency
- Lower voltage loss
- Improved system safety
- Longer equipment lifespan
- Reduced maintenance expenses
- Better return on investment
- Reliable long-term performance
Conclusion
Choosing the correct solar cable size is one of the most important decisions when designing an efficient photovoltaic system. Selecting the appropriate cable ensures that electricity is transmitted safely while maximizing the overall performance and reliability of the solar installation.
A properly sized solar cable minimizes voltage drop, improves energy transfer, enhances electrical safety, and reduces power losses. It also helps protect system components, extends equipment lifespan, and ensures the solar array operates at peak efficiency.
When selecting a solar cable, it is important to consider factors such as current-carrying capacity, cable length, operating temperature, conductor material, insulation type, and the installation environment. Evaluating these factors helps ensure the cable meets both performance requirements and applicable electrical standards.
Whether you’re installing a residential, commercial, or off-grid solar system, using the correct solar cable size is essential for achieving safe, efficient, and long-lasting performance. Always verify your design against local electrical regulations and manufacturer recommendations before installation to ensure maximum safety, efficiency, and code compliance.
Also Read: Marine Wire Size Chart: Choose the Right AWG Size
FAQs:
Is 4 mm² cable enough for solar panels?
A 4 mm² solar cable is suitable for many residential photovoltaic systems with moderate current levels and relatively short cable runs. However, the correct cable size depends on factors such as system voltage, current, cable length, and allowable voltage drop. Always perform proper calculations before installation.
Which is better, 4 mm² or 6 mm² solar cable?
A 6 mm² solar cable can safely carry more current and produces less voltage drop than a 4 mm² cable, making it a better choice for longer cable runs or higher-capacity solar systems. The best option depends on your installation requirements, electrical load, and distance between system components.
Can I use normal electrical cable for solar panels?
No. Standard electrical cables are generally not designed to withstand continuous sunlight, ultraviolet radiation, extreme temperatures, and harsh outdoor conditions. Solar PV cables feature UV-resistant insulation, weatherproof construction, and higher durability, making them the safer and more reliable choice for photovoltaic installations.
How long do solar cables last?
High-quality solar cables typically have a service life of 25 years or more when properly installed and protected from excessive mechanical damage. Their long lifespan is designed to match the expected operating life of most photovoltaic systems while maintaining safe and reliable electrical performance.
Should I always choose a larger cable size?
Not necessarily. Choosing a larger cable than required can reduce voltage drop, but it also increases material and installation costs. The ideal cable size is one that safely meets current-carrying capacity, voltage drop limits, environmental conditions, and applicable electrical code requirements without unnecessary oversizing.
